COLOR MEMORY GAME ARDUINO

1#define NOTE_B0 31
2#define NOTE_C1 33
3#define NOTE_CS1 35
4#define NOTE_D1 37
5#define NOTE_DS1 39
6#define NOTE_E1 41
7#define NOTE_F1 44
8#define NOTE_FS1 46
9#define NOTE_G1 49
10#define NOTE_GS1 52
11#define NOTE_A1 55
12#define NOTE_AS1 58
13#define NOTE_B1 62
14#define NOTE_C2 65
15#define NOTE_CS2 69
16#define NOTE_D2 73
17#define NOTE_DS2 78
18#define NOTE_E2 82
19#define NOTE_F2 87
20#define NOTE_FS2 93
21#define NOTE_G2 98
22#define NOTE_GS2 104
23#define NOTE_A2 110
24#define NOTE_AS2 117
25#define NOTE_B2 123
26#define NOTE_C3 131
27#define NOTE_CS3 139
28#define NOTE_D3 147
29#define NOTE_DS3 156
30#define NOTE_E3 165
31#define NOTE_F3 175
32#define NOTE_FS3 185
33#define NOTE_G3 196
34#define NOTE_GS3 208
35#define NOTE_A3 220
36#define NOTE_AS3 233
37#define NOTE_B3 247
38#define NOTE_C4 262
39#define NOTE_CS4 277
40#define NOTE_D4 294
41#define NOTE_DS4 311
42#define NOTE_E4 330
43#define NOTE_F4 349
44#define NOTE_FS4 370
45#define NOTE_G4 392
46#define NOTE_GS4 415
47#define NOTE_A4 440
48#define NOTE_AS4 466
49#define NOTE_B4 494
50#define NOTE_C5 523
51#define NOTE_CS5 554
52#define NOTE_D5 587
53#define NOTE_DS5 622
54#define NOTE_E5 659
55#define NOTE_F5 698
56#define NOTE_FS5 740
57#define NOTE_G5 784
58#define NOTE_GS5 831
59#define NOTE_A5 880
60#define NOTE_AS5 932
61#define NOTE_B5 988
62#define NOTE_C6 1047
63#define NOTE_CS6 1109
64#define NOTE_D6 1175
65#define NOTE_DS6 1245
66#define NOTE_E6 1319
67#define NOTE_F6 1397
68#define NOTE_FS6 1480
69#define NOTE_G6 1568
70#define NOTE_GS6 1661
71#define NOTE_A6 1760
72#define NOTE_AS6 1865
73#define NOTE_B6 1976
74#define NOTE_C7 2093
75#define NOTE_CS7 2217
76#define NOTE_D7 2349
77#define NOTE_DS7 2489
78#define NOTE_E7 2637
79#define NOTE_F7 2794
80#define NOTE_FS7 2960
81#define NOTE_G7 3136
82#define NOTE_GS7 3322
83#define NOTE_A7 3520
84#define NOTE_AS7 3729
85#define NOTE_B7 3951
86#define NOTE_C8 4186
87#define NOTE_CS8 4435
88#define NOTE_D8 4699
89#define NOTE_DS8 4978
90
91#define CHOICE_OFF      0 //Used to control LEDs
92#define CHOICE_NONE     0 //Used to check buttons
93#define CHOICE_RED  (1 << 0)
94#define CHOICE_GREEN    (1 << 1)
95#define CHOICE_BLUE (1 << 2)
96#define CHOICE_YELLOW   (1 << 3)
97

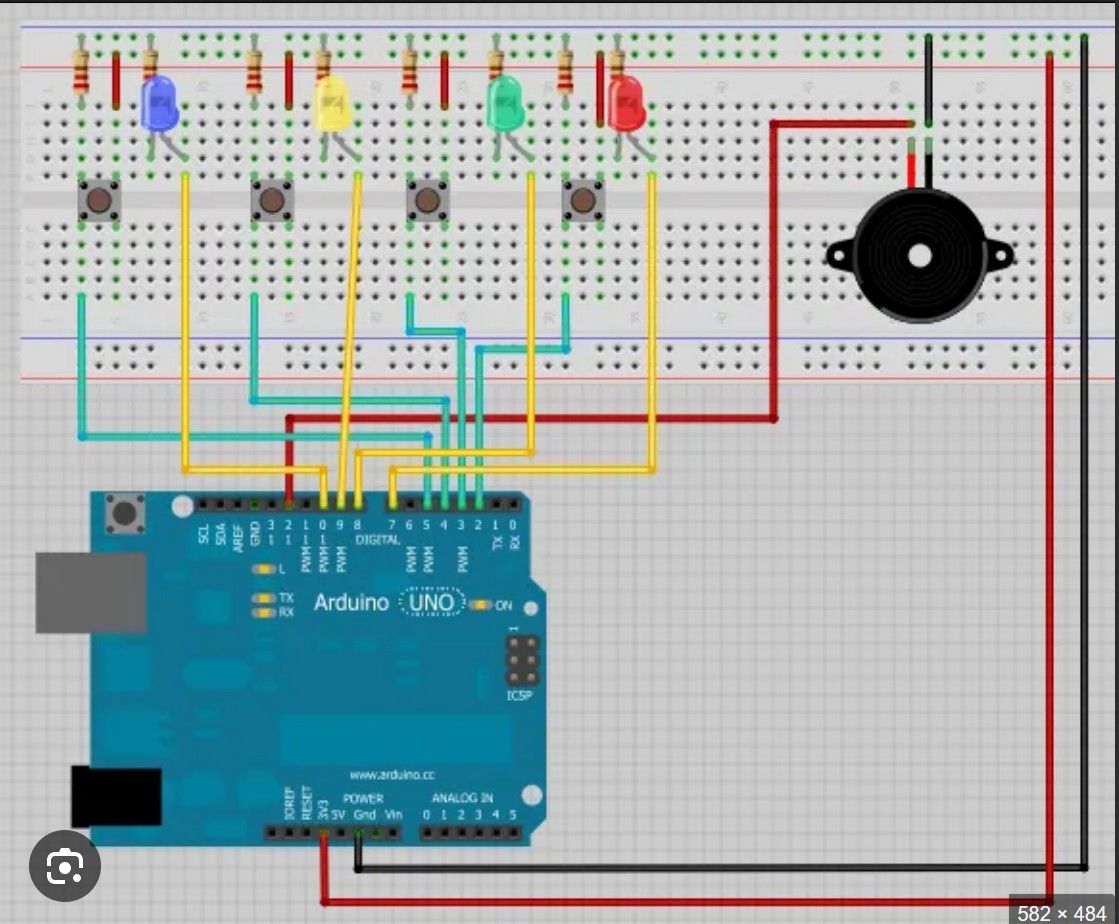

98// UPDATED: Your Custom LED Wiring
99#define LED_RED     10
100#define LED_GREEN   9
101#define LED_BLUE    8
102#define LED_YELLOW  7
103
104// UPDATED: Your Custom Button Wiring
105#define BUTTON_RED    5
106#define BUTTON_GREEN  4
107#define BUTTON_BLUE   3
108#define BUTTON_YELLOW 2
109
110// UPDATED: Your Custom Buzzer Wiring
111#define BUZZER1  10
112
113// Define game parameters
114#define ROUNDS_TO_WIN      13 //Number of rounds to succesfully remember before you win. 13 is do-able.
115#define ENTRY_TIME_LIMIT   3000 //Amount of time to press a button before game times out. 3000ms = 3 sec
116
117#define MODE_MEMORY  0
118#define MODE_BATTLE  1
119#define MODE_BEEGEES 2
120
121// Game state variables
122byte gameMode = MODE_MEMORY; //By default, let's play the memory game
123byte gameBoard[32]; //Contains the combination of buttons as we advance
124byte gameRound = 0; //Counts the number of succesful rounds the player has made it through
125
126void setup()
127{
128  //Enable pull ups on inputs
129  pinMode(BUTTON_RED, INPUT_PULLUP);
130  pinMode(BUTTON_GREEN, INPUT_PULLUP);
131  pinMode(BUTTON_BLUE, INPUT_PULLUP);
132  pinMode(BUTTON_YELLOW, INPUT_PULLUP);
133
134  pinMode(LED_RED, OUTPUT);
135  pinMode(LED_GREEN, OUTPUT);
136  pinMode(LED_BLUE, OUTPUT);
137  pinMode(LED_YELLOW, OUTPUT);
138
139  pinMode(BUZZER1, OUTPUT);
140
141  //Mode checking
142  gameMode = MODE_MEMORY;
143
144  if (checkButton() == CHOICE_YELLOW) play_beegees();
145
146  if (checkButton() == CHOICE_GREEN)
147  {
148    gameMode = MODE_BATTLE;
149
150    setLEDs(CHOICE_GREEN);
151    toner(CHOICE_GREEN, 150);
152
153    setLEDs(CHOICE_RED | CHOICE_BLUE | CHOICE_YELLOW);
154
155    while(checkButton() != CHOICE_NONE) ;
156  }
157
158  play_winner();
159}
160
161void loop()
162{
163  attractMode();
164
165  // UPDATED: Fast 3x blink to start the game
166  for(int i = 0; i < 3; i++) {
167    setLEDs(CHOICE_RED | CHOICE_GREEN | CHOICE_BLUE | CHOICE_YELLOW);
168    buzz_sound(100, 1136);
169    setLEDs(CHOICE_OFF);
170    delay(100);
171  }
172  delay(300); // Short pause before game starts
173
174  if (gameMode == MODE_MEMORY)
175  {
176    if (play_memory() == true)
177      play_winner();
178    else
179      play_loser();
180  }
181
182  if (gameMode == MODE_BATTLE)
183  {
184    play_battle();
185    play_loser();
186  }
187}
188
189//-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
190
191boolean play_memory(void)
192{
193  randomSeed(millis());
194  gameRound = 0;
195
196  while (gameRound < ROUNDS_TO_WIN)
197  {
198    add_to_moves();
199    playMoves();
200
201    for (byte currentMove = 0 ; currentMove < gameRound ; currentMove++)
202    {
203      byte choice = wait_for_button();
204
205      if (choice == 0) return false;
206      if (choice != gameBoard[currentMove]) return false;
207    }
208
209    delay(500); // Kept fast for pacing
210  }
211  return true;
212}
213
214boolean play_battle(void)
215{
216  gameRound = 0;
217
218  while (1)
219  {
220    byte newButton = wait_for_button();
221    gameBoard[gameRound++] = newButton;
222
223    for (byte currentMove = 0 ; currentMove < gameRound ; currentMove++)
224    {
225      byte choice = wait_for_button();
226
227      if (choice == 0) return false;
228      if (choice != gameBoard[currentMove]) return false;
229    }
230
231    delay(100);
232  }
233  return true;
234}
235
236void playMoves(void)
237{
238  for (byte currentMove = 0 ; currentMove < gameRound ; currentMove++)
239  {
240    toner(gameBoard[currentMove], 150);
241    delay(150);
242  }
243}
244
245void add_to_moves(void)
246{
247  byte newButton = random(0, 4);
248
249  if(newButton == 0) newButton = CHOICE_RED;
250  else if(newButton == 1) newButton = CHOICE_GREEN;
251  else if(newButton == 2) newButton = CHOICE_BLUE;
252  else if(newButton == 3) newButton = CHOICE_YELLOW;
253
254  gameBoard[gameRound++] = newButton;
255}
256
257//-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
258
259// UPDATED: Brightness set to 200 using analogWrite
260void setLEDs(byte leds)
261{
262  if ((leds & CHOICE_RED) != 0) analogWrite(LED_RED, 200);
263  else digitalWrite(LED_RED, LOW);
264
265  if ((leds & CHOICE_GREEN) != 0) analogWrite(LED_GREEN, 200);
266  else digitalWrite(LED_GREEN, LOW);
267
268  if ((leds & CHOICE_BLUE) != 0) analogWrite(LED_BLUE, 200);
269  else digitalWrite(LED_BLUE, LOW);
270
271  if ((leds & CHOICE_YELLOW) != 0) analogWrite(LED_YELLOW, 200);
272  else digitalWrite(LED_YELLOW, LOW);
273}
274
275byte wait_for_button(void)
276{
277  long startTime = millis();
278
279  while ( (millis() - startTime) < ENTRY_TIME_LIMIT)
280  {
281    byte button = checkButton();
282
283    if (button != CHOICE_NONE)
284    {
285      toner(button, 150);
286      while(checkButton() != CHOICE_NONE) ;
287      delay(10);
288      return button;
289    }
290  }
291  return CHOICE_NONE;
292}
293
294byte checkButton(void)
295{
296  if (digitalRead(BUTTON_RED) == 0) return(CHOICE_RED);
297  else if (digitalRead(BUTTON_GREEN) == 0) return(CHOICE_GREEN);
298  else if (digitalRead(BUTTON_BLUE) == 0) return(CHOICE_BLUE);
299  else if (digitalRead(BUTTON_YELLOW) == 0) return(CHOICE_YELLOW);
300
301  return(CHOICE_NONE);
302}
303
304void toner(byte which, int buzz_length_ms)
305{
306  setLEDs(which);
307
308  switch(which)
309  {
310  case CHOICE_RED: buzz_sound(buzz_length_ms, 1136); break;
311  case CHOICE_GREEN: buzz_sound(buzz_length_ms, 568); break;
312  case CHOICE_BLUE: buzz_sound(buzz_length_ms, 851); break;
313  case CHOICE_YELLOW: buzz_sound(buzz_length_ms, 638); break;
314  }
315
316  setLEDs(CHOICE_OFF);
317}
318
319// UPDATED: Modified for a single buzzer pin
320void buzz_sound(int buzz_length_ms, int buzz_delay_us)
321{
322  long buzz_length_us = buzz_length_ms * (long)1000;
323
324  while (buzz_length_us > (buzz_delay_us * 2))
325  {
326    buzz_length_us -= buzz_delay_us * 2;
327
328    digitalWrite(BUZZER1, HIGH);
329    delayMicroseconds(buzz_delay_us);
330
331    digitalWrite(BUZZER1, LOW);
332    delayMicroseconds(buzz_delay_us);
333  }
334}
335
336void play_winner(void)
337{
338  setLEDs(CHOICE_GREEN | CHOICE_BLUE);
339  winner_sound();
340  setLEDs(CHOICE_RED | CHOICE_YELLOW);
341  winner_sound();
342  setLEDs(CHOICE_GREEN | CHOICE_BLUE);
343  winner_sound();
344  setLEDs(CHOICE_RED | CHOICE_YELLOW);
345  winner_sound();
346
347  // UPDATED: 3x blink at the end
348  delay(300);
349  for(int i = 0; i < 3; i++) {
350    setLEDs(CHOICE_RED | CHOICE_GREEN | CHOICE_BLUE | CHOICE_YELLOW);
351    buzz_sound(150, 800);
352    setLEDs(CHOICE_OFF);
353    delay(150);
354  }
355}
356
357// UPDATED: Modified for single buzzer pin
358void winner_sound(void)
359{
360  for (byte x = 250 ; x > 70 ; x--)
361  {
362    for (byte y = 0 ; y < 3 ; y++)
363    {
364      digitalWrite(BUZZER1, HIGH);
365      delayMicroseconds(x);
366
367      digitalWrite(BUZZER1, LOW);
368      delayMicroseconds(x);
369    }
370  }
371}
372
373void play_loser(void)
374{
375  setLEDs(CHOICE_RED | CHOICE_GREEN);
376  buzz_sound(255, 1500);
377
378  setLEDs(CHOICE_BLUE | CHOICE_YELLOW);
379  buzz_sound(255, 1500);
380
381  setLEDs(CHOICE_RED | CHOICE_GREEN);
382  buzz_sound(255, 1500);
383
384  setLEDs(CHOICE_BLUE | CHOICE_YELLOW);
385  buzz_sound(255, 1500);
386
387  // UPDATED: 3x blink at the end
388  delay(300);
389  for(int i = 0; i < 3; i++) {
390    setLEDs(CHOICE_RED | CHOICE_GREEN | CHOICE_BLUE | CHOICE_YELLOW);
391    buzz_sound(150, 1500);
392    setLEDs(CHOICE_OFF);
393    delay(150);
394  }
395}
396
397void attractMode(void)
398{
399  while(1)
400  {
401    setLEDs(CHOICE_RED);
402    delay(100);
403    if (checkButton() != CHOICE_NONE) return;
404
405    setLEDs(CHOICE_BLUE);
406    delay(100);
407    if (checkButton() != CHOICE_NONE) return;
408
409    setLEDs(CHOICE_GREEN);
410    delay(100);
411    if (checkButton() != CHOICE_NONE) return;
412
413    setLEDs(CHOICE_YELLOW);
414    delay(100);
415    if (checkButton() != CHOICE_NONE) return;
416  }
417}
418
419//-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
420
421int melody[] = {
422  NOTE_G4, NOTE_A4, 0, NOTE_C5, 0, 0, NOTE_G4, 0, 0, 0,
423  NOTE_E4, 0, NOTE_D4, NOTE_E4, NOTE_G4, 0,
424  NOTE_D4, NOTE_E4, 0, NOTE_G4, 0, 0,
425  NOTE_D4, 0, NOTE_E4, 0, NOTE_G4, 0, NOTE_A4, 0, NOTE_C5, 0};
426
427int noteDuration = 115;
428int LEDnumber = 0;
429
430void play_beegees()
431{
432  setLEDs(CHOICE_YELLOW);
433  toner(CHOICE_YELLOW, 150);
434  setLEDs(CHOICE_RED | CHOICE_GREEN | CHOICE_BLUE);
435  while(checkButton() != CHOICE_NONE) ;
436
437  setLEDs(CHOICE_NONE);
438  delay(1000);
439
440  while(checkButton() == CHOICE_NONE)
441  {
442    for (int thisNote = 0; thisNote < 32; thisNote++) {
443      changeLED();
444      tone(BUZZER1, melody[thisNote],noteDuration); // UPDATED: Changed to BUZZER1
445      int pauseBetweenNotes = noteDuration * 1.30;
446      delay(pauseBetweenNotes);
447      noTone(BUZZER1); // UPDATED: Changed to BUZZER1
448    }
449  }
450}
451
452void changeLED(void)
453{
454  setLEDs(1 << LEDnumber);
455  LEDnumber++;
456  if(LEDnumber > 3) LEDnumber = 0;
457}
