Finger controlled led

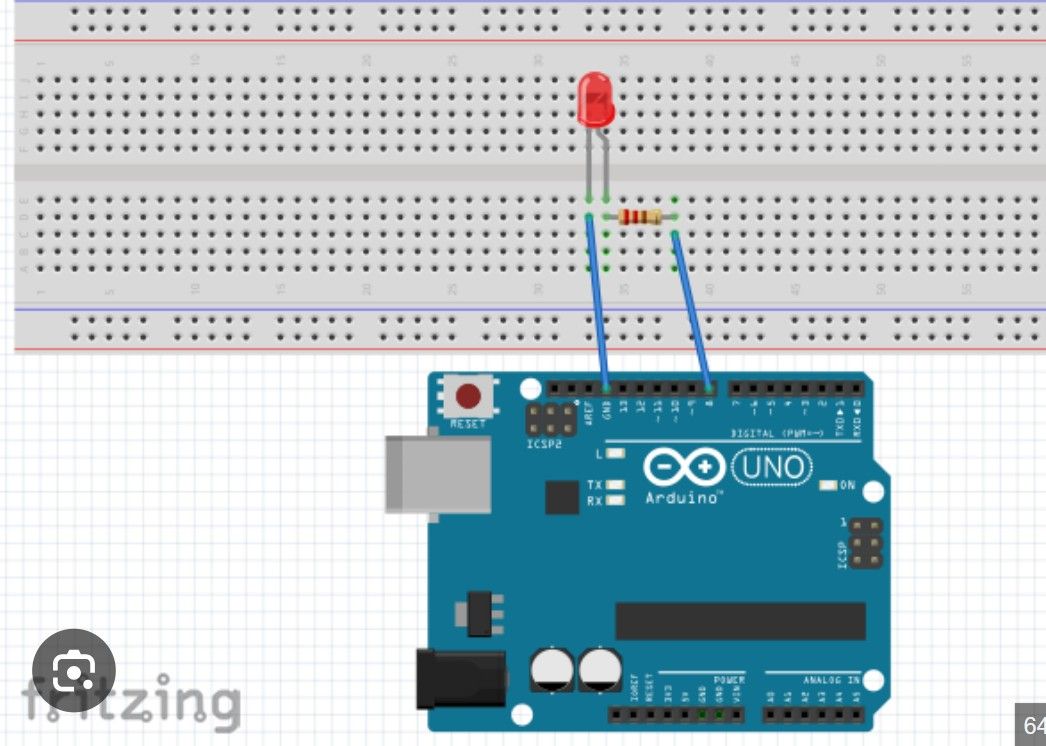

1int ledPin = 9; // PWM pin for the LED
2
3void setup() {
4  // Start serial communication at 9600 baud rate
5  Serial.begin(9600);
6  pinMode(ledPin, OUTPUT);
7}
8
9void loop() {
10  // Check if Python is sending data
11  if (Serial.available() > 0) {
12    // Read the incoming byte (0 to 255)
13    int brightness = Serial.read();
14
15    // Apply the brightness to the LED
16    analogWrite(ledPin, brightness);
17  }
18}
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37//Python code
38
39
40
41
42
43
44
45
46import cv2
47import mediapipe as mp
48import serial
49import math
50import numpy as np
51
52# --- SET YOUR ARDUINO PORT HERE ---
53# Windows: 'COM3', 'COM4', etc.
54# Mac/Linux: '/dev/cu.usbmodem14101' or similar
55arduino = serial.Serial('COM3', 9600)
56
57# Initialize MediaPipe Hand Tracking
58mp_hands = mp.solutions.hands
59hands = mp_hands.Hands(min_detection_confidence=0.7, min_tracking_confidence=0.7)
60mp_draw = mp.solutions.drawing_utils
61
62# Open the webcam
63cap = cv2.VideoCapture(0)
64
65while True:
66    success, img = cap.read()
67    if not success:
68        break
69
70    img_rgb = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)
71    results = hands.process(img_rgb)
72
73    if results.multi_hand_landmarks:
74        for hand_landmarks in results.multi_hand_landmarks:
75            # Get coordinates of Thumb Tip (Landmark 4) and Index Tip (Landmark 8)
76            thumb_x, thumb_y = hand_landmarks.landmark[4].x, hand_landmarks.landmark[4].y
77            index_x, index_y = hand_landmarks.landmark[8].x, hand_landmarks.landmark[8].y
78
79            # Convert normalized coordinates to actual pixel values
80            h, w, _ = img.shape
81            thumb_x, thumb_y = int(thumb_x * w), int(thumb_y * h)
82            index_x, index_y = int(index_x * w), int(index_y * h)
83
84            # Draw circles on the fingertips and a line between them for a cool visual
85            cv2.circle(img, (thumb_x, thumb_y), 10, (0, 255, 255), cv2.FILLED)
86            cv2.circle(img, (index_x, index_y), 10, (0, 255, 255), cv2.FILLED)
87            cv2.line(img, (thumb_x, thumb_y), (index_x, index_y), (255, 0, 0), 3)
88
89            # Calculate the distance between the two fingers
90            length = math.hypot(index_x - thumb_x, index_y - thumb_y)
91
92            # Map the finger distance to the LED brightness (PWM range: 0 to 255)
93            # You might need to adjust the [30, 200] range depending on how close you are to the camera
94            brightness = np.interp(length, [30, 200], [0, 255])
95            brightness = int(brightness)
96
97            # Send the brightness value to the Arduino as a single byte
98            arduino.write(bytes([brightness]))
99
100            # Draw the rest of the hand skeleton
101            mp_draw.draw_landmarks(img, hand_landmarks, mp_hands.HAND_CONNECTIONS)
102
103    # Show the webcam feed
104    cv2.imshow("Gesture Controller", img)
105
106    # Press 'q' to quit
107    if cv2.waitKey(1) & 0xFF == ord('q'):
108        break
109
110# Clean up and close connections
111cap.release()
112cv2.destroyAllWindows()
113arduino.close()
